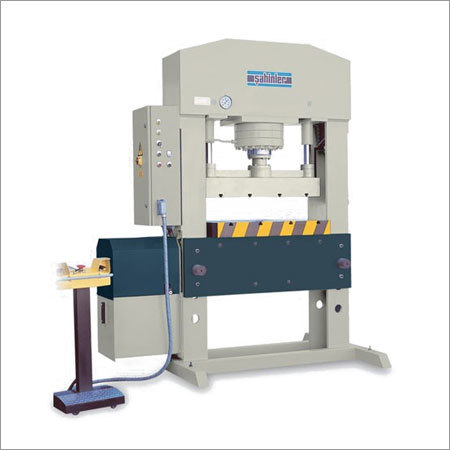

Universal T Slot Hydraulic Presses

Universal T Slot Hydraulic Presses
Universal T Slot Hydraulic Presses
Product Code : AT
Product Description

Universal T Slot Hydraulic Presses Widely used in various domains, our provided Universal T Slot Hydraulic Presses are reliable and deliver efficient performance. These presses are equipped with pressure gradeless feature and stroke stepless adjustment. The machine has a top and bottom table with T-Chanels to replace a mould. These are high capacity workshop forming presses which are provided with extra two guide pistons in both sides. The table in this machine is height adjustable. Moreover, these Universal T Slot Hydraulic Presses are available for our customers at market leading price.

Technical Specifications:

MODEL

AT 1020/100

AT 1520/100

AT 1020/150

AT 1520/150

Press Power

kN

1000

1000

1500

1500

Max.Working Pressure

bar

263

263

244

244

Stroke

mm

300

300

300

300

Width of Working Area

mm

1020

1520

1020

1520

Distance Between Tables

mm

680

680

610

610

Advance Speed

mm/sec

8

8

9

9

Working Speed

mm/sec

5

5

5

5

Return Speed

mm/sec

10

10

10

10

Die Table Dimension

mm

500 x1020

500 x1520

600 x1020

600 x1520

Die Table Center Hole

Ø mm

100

100

100

100

Motor power

kW

7,5

7,5

11

11

Length

mm

2110

2610

2110

2610

Width

mm

1000

1000

1000

1000

Height

mm

2350

2480

2350

2480

Weight

kg

1985

2500

2450

3200


SAHINLER METAL MAK.END.A.S.
