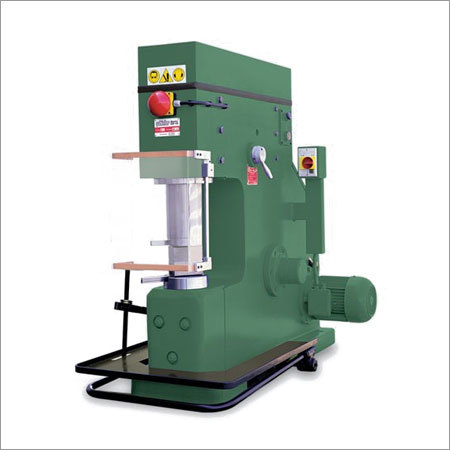

Power Hammer

Power Hammer
Power Hammer
Product Code : SM 50 – 60
Product Description

We have registered ourselves in the list of reliable organizations offering high performance Power hammer to our clients. The frame of this is steel welded to render durability and operational safety. The working of this machine is based on air pressure pneumatic working system. A pneumatic lubrication is also provided for smooth operation and to deliver excellent performance. An emergency stop button is also provided which stops in the machine at any point of time. Also, this Powerhammer features a foot protective sheet cover and motor preventive switch.

Technical Specifications:

MODEL

SM 50

SM 60

Nominal Dropping Weight

kg

ca. 50

ca.60

Number of hits per minute

rpm

220

220

Motor power

kW

5. 5

5. 5

Hit stroke

mm

max. 230

max. 230

Length

mm

1600

1600

Width

mm

900

900

Height

mm

1595

1595

Weight

kg

1150

1175


SAHINLER METAL MAK.END.A.S.
