Manuel & Motorised Bordering And Trimming Machines

Manuel & Motorised Bordering And Trimming Machines
Manuel & Motorised Bordering And Trimming Machines
Send Inquiry
Product Code : IKMP 1.2
Product Description

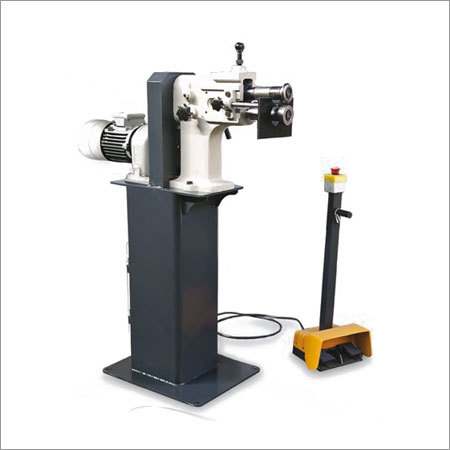

Manual Motorized Bordering and Trimming Machine

We are involved in the fabrication and supplying of the optimally made Manual Motorized Bordering and Trimming Machine. The main frame of this system is made up of using the quality grade of metal compound. This provides the both forward and backward adjustable support to the sheets for trimming and bordering purposes. It is mainly used in number of industrial sectors, such as construction, workshops to warehouses. This Manual Motorized Bordering and Trimming Machine have gearbox motor along with the brake system, which makes it easier to carry for the workshops. It has the adjustable bottom roll which can be easily controlled with the foot pedal. In different sets of specifications offered machinery can be easily availed by our esteemed clients as per their requirements.

Technical Specifications:

MODEL

IK
0.8

IK
1.2

IKMP
1.2

Shaft Length

mm

110

140

140

Bordering Capacity

mm

0.8

1.2

1.20

Roll Diameter

Ø mm

52

62

62

Throat Depth

mm

80

100

100

Motor Rotation

m/dak. - m/min.

-

-

32

Motor power

kW

-

-

0.75

Length

mm

380

560

900

Width

mm

180

220

450

Height

mm

380

500

1350

Weight

kg.

30

50

135
