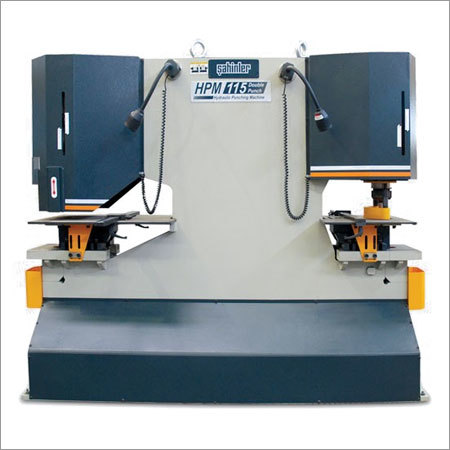

Hydraulic Punching Machine

Hydraulic Punching Machine
Hydraulic Punching Machine
Product Code : HPM 65-85-115-175 DP
Product Description

Extensively used in metal industry, our provided Hydraulic Punching Machine can perform a host of functions such as bending, punching, cutting, inlaying and embossing metal surfaces. Excellent quality components are used to manufacture this machine at our sophisticated production facility. Some of the features of this machine are full stroke adjustment, low power inching, universal die bolster punching up to 38mm and a Punch table with multi-purpose bolster removable table block for overhang channel/joist flange punching. Prior to final dispatch, this Hydraulic Punching Machine is stringently checked on several quality parameters.

Technical Specifications:

Punching

HPM 65

HPM 85

HPM 115

HPM 175

Diameter x max. thickness

Ø 26 x 20 mm

Ø 33 x 20 mm

Ø 34 x 26 mm

Ø 40 x 32 mm

Diameter x thickness

Ø 57 x 10 mm

Ø 57 x 12 mm

Ø 55 x 16 mm

Ø 57 x 22 mm

Maximum Diameter

Ø 110 x 3 mm

Ø 110 x 4 mm

Ø 110 x 5 mm

Ø 125 x 5 mm

Stroke

55 mm

80 mm

80 mm

80 mm

Stroke count in (20 mm)

x 22

x 21

x 21

x 21

Throat depth

625 mm

625 mm

625 mm

625 mm

Working height

950 mm

950 mm

950 mm

950 mm

Technical data

HPM 65

HPM 85

HPM 115

HPM 175

V - bending
Press Brake

Bar bend Max.

250 x 15 mm

250 x 20 mm

250 x 22 mm

250 x 25 mm

Sheet bend. max.

500 x 3 mm

500 x 3 mm

700 x 3 mm

700 x 4 mm

Technical data

HPM 65

HPM 85

HPM 115

HPM 175

Motor Power

5. 5 kW

7. 5 kW

11 kW

11 kW

Weight

2440 kg

3270 kg

3760 kg

5270 kg

Machine Dimensions (L x W x H)

1600 x 900 x 1800

1850 x 950 x 1920

2000 x 950 x 1970

2700 x 1120 x 2160

Power (Pressure)

65 ton

85 ton

115 ton

175 ton
