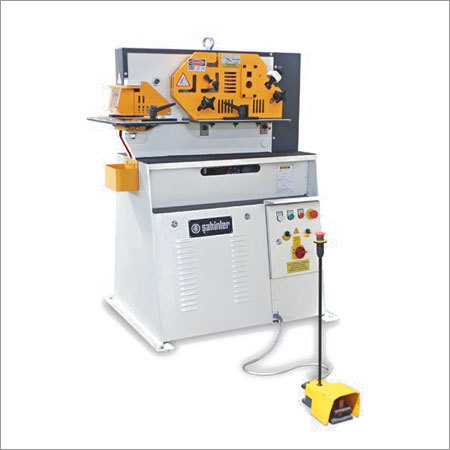

Hydraulic Ironworker

Hydraulic Ironworker
Hydraulic Ironworker
Product Code : HKM 40
Product Description

We have gained a remarkable position in the market by providing to our customers highly efficient range of Hydraulic Ironworker. This is manufactured and assembled at our well set up production facility under the guidance of highly qualified professionals. Used in various industries for angle cutting, channel cutting, flat cutting, round bar cutting, square bar cutting, notching and punching, this Hydraulic Ironworker is a reliable machine which offers an effective solution for applications involving cutting an punching. Our customers can avail this at budget friendly price.

Technical Specifications:


PUNCHING

HKM 40

Diameter x max. thickness

Ø 20 x 15 mm

Diameter x thickness

Ø 30 x 10 mm

Maximum Diameter

Ø 38 x 8 mm

Stroke

50 mm

Stroke count in (20 mm)

x 20

Throat depth

175 mm

Working height

970 mm


STEEL BAR SHEAR

HKM 40

Round / Square

Ø 30- 25 mm




ANGLE SHEAR

HKM 40

Angle section (90°)

80 x 80 x 8 mm

Angle section (45°)

50 x 6 mm

Working height

1110 mm


SHEET METAL SHEAR

HKM 40

Sheet metal

200 x 13 mm

Sheet metal

300 x 6 mm

Blade Length

356 mm

Shearing with angle

80 x 10 mm

Working height

980 mm

NOTCHING

HKM 40

Thickness


Width


Depth


Working height


TECHNICAL DATA

HKM 40

Motor Power

3 kW

Weight

580 kg

Machine Dimensions
(LxWxH)

1100x800x1520mm

Power (Pressure)

40 ton



SAHINLER METAL MAK.END.A.S.
