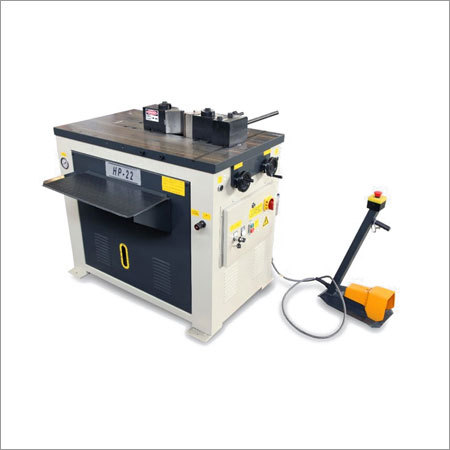

Hydraulic Horizontal Press

Hydraulic Horizontal Press
Hydraulic Horizontal Press
Product Code : HP 10-22-40-80
Product Description

Technical Specifications:

MODEL

HP 10

HP 22

HP 40

HP 80

Workbench dimensions

mm

220x180

625x1100

620x1050

550x720

Height of workbench from the ground

mm

--

920

930

960

Max. operating pressure

ton

10

22

40

80

Max. operating pressure in hydraulic circuit

bar

120

230

250

250

Motor power

kW

1,1

1,5

1,5

7,5

Advance and return speed

m/min.

1750/2000

1750/2000

1750/2000

9

Mobile punch operating speed

m/min.

450

450

470

470

Min./max. axis base between

mm

110/310

110/310

120/370

120/370

Mobile and fixed pins height

mm

100

120

120

120

Mobile and fixed pins diameters

mm

--

55/55

55/63

55/63

Max. stroke of mobile punch

mm

200

200

250

280

Hydraulic oil tank capacity

lt

8

45

70

60

Noise level

db

--

70

70

70

Machine dimensions L x W x H

mm

1200x550x400

110x630x925

1150x700x950

1100x750x1430

Weight

kg

80

635

920

2200
