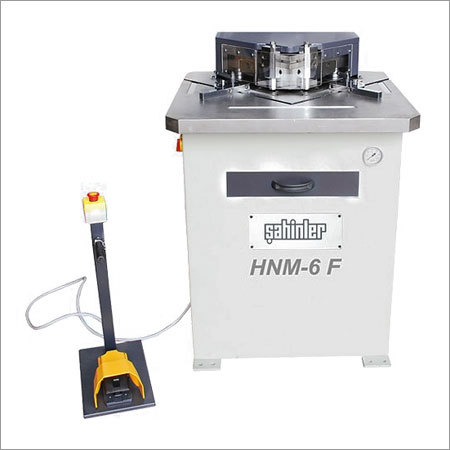

Hydraulic Corner Notching Machine - Fixed Angle

Hydraulic Corner Notching Machine - Fixed Angle
Hydraulic Corner Notching Machine - Fixed Angle
Product Code : HNM-6 F
Product Description

Owing to our extensive experience in this domain, we have gained a reputed position in the industry by providing Hydraulic Corner Notching Machine - Fixed Angle. This machine can cut up to 6mm. Widely used in sheet metal and pipes industry, the offered machine has the biggest notcher size of 250x250mm. The notching angle fixes in 90° with high notching speed. Excellent quality components are fitted in this The notching angle fixes in 90° with high notching speed Hydraulic Corner Notching Machine - Fixed Angle machine. Also, The hydraulic notcher has compact structure,small volume and convenient operation

Features

  • The HNM-6 F hydraulic notcher can cut up to 6 mm
  • The biggest notcher size is 250x250mm
  • The notching angle fixes in 90° with high notching speed
  • The hydraulic notcher has compact structure,small volume and convenient operation

Technical Specification

Model


HNM - 6 F

Steel ST 37

mm (90°)

6

Stainless

mm (90°)

3

Motor

kW

4

Table dimension

mm

800x750

Cutting angle

derece/deg /гра дус

90

Max. cutting stroke

dak./per min./в мин.

25

Blade length

mm

200x200

Oil tank capacity

litre/lt/ л

35

Maximum working pressure

bar/bar/бар

200

Length

mm

800

Width

mm

850

Height

mm

1200

Weight (approx)

kg

610


SAHINLER METAL MAK.END.A.S.
